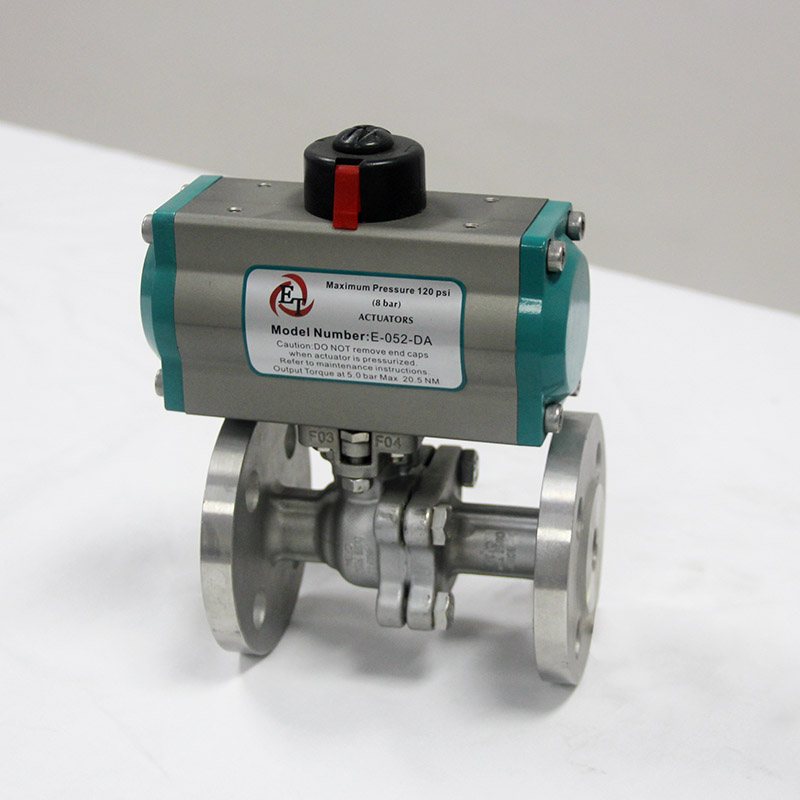

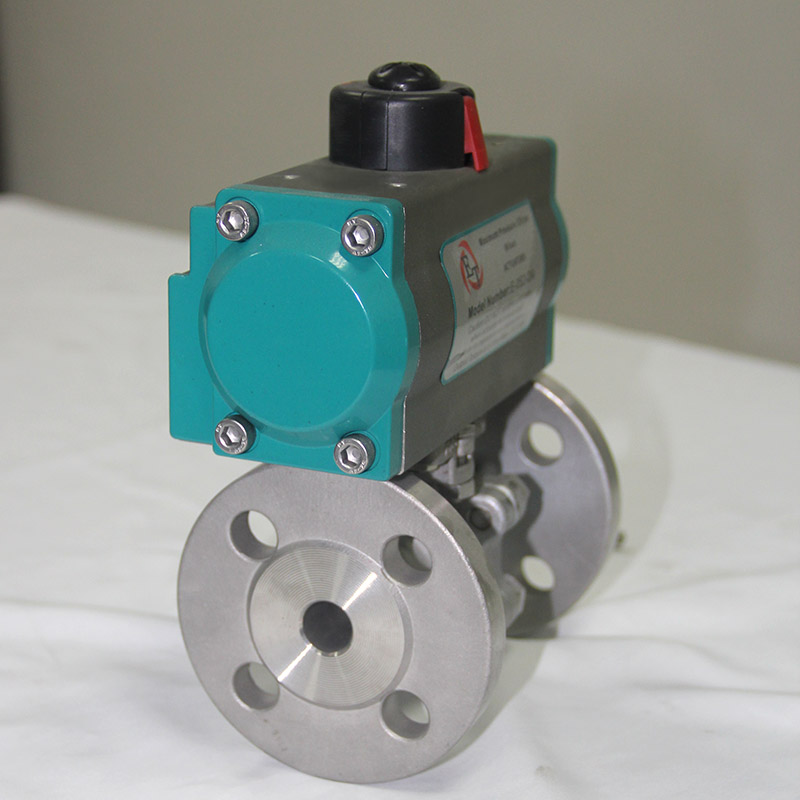

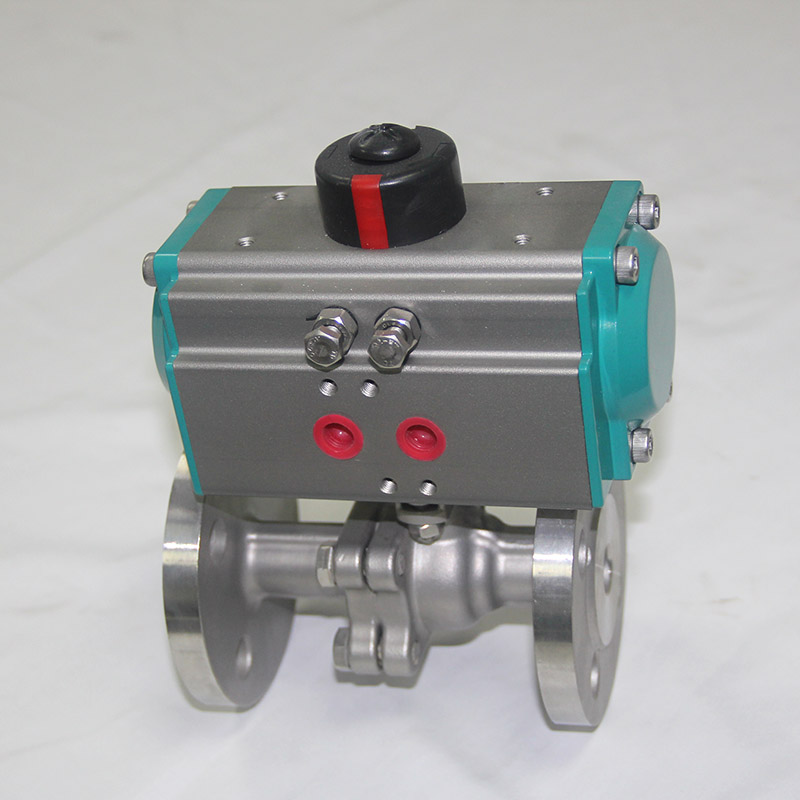

2PC flange ball valve With ISO5211 pad(GB）（DB）(MB)

Applicable to water steam oil viscous media

Fire prevention and anti-static,Blow-out proof stem

Torque balance,Daikin/3M seal

Investment casting,casting passed Germany TUV certification

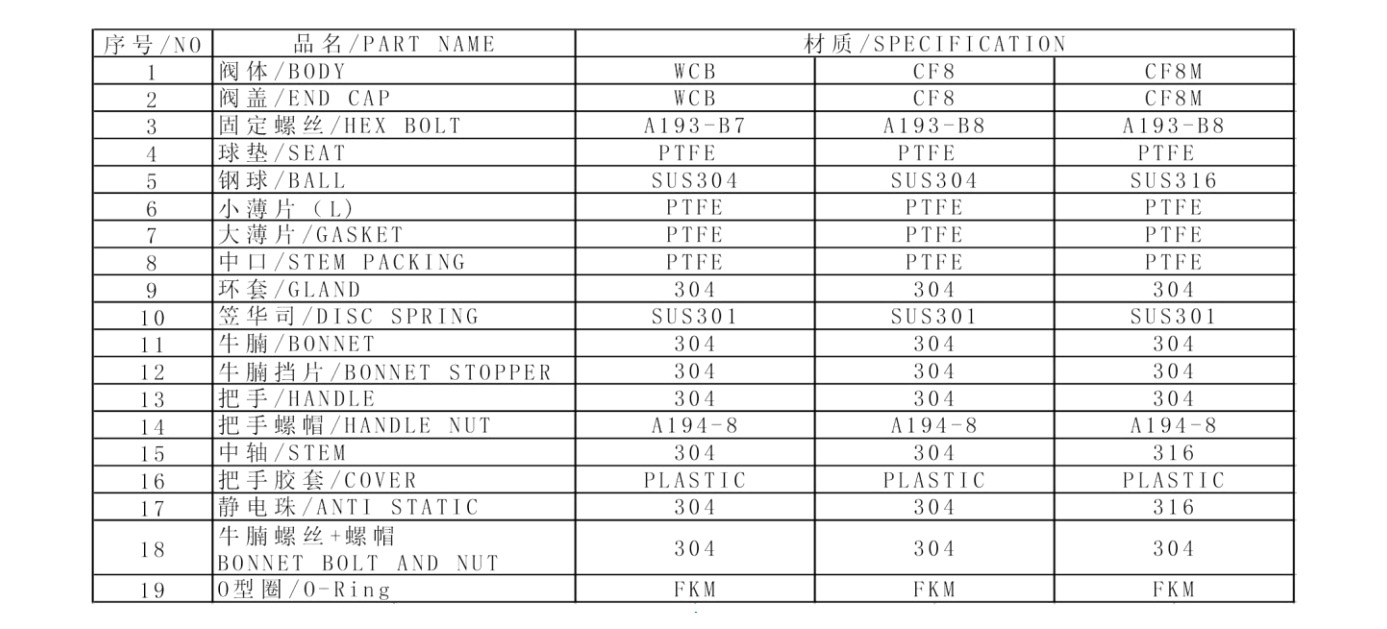

Material:CF8/CF8M/CF3/CF3M/WCB(Customizalbe)

Standard Specification

Pressure/Temperature:GB/T26640       Design: GB/T12237

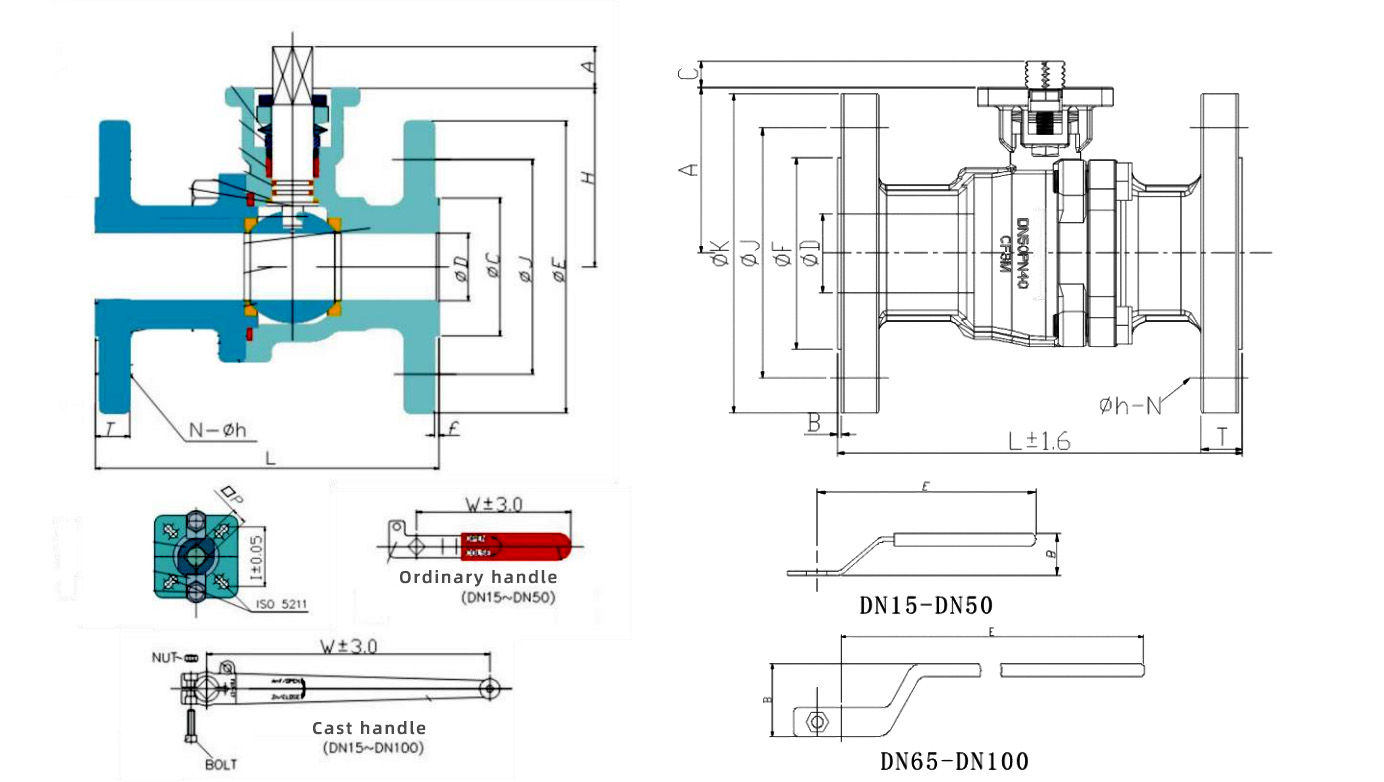

Structure length:GB/T12221                Test:G B/T13927

Connection Type:HG/T 20592 GB/T9113

2PCFLANGED BALL VALVE WITHISO5211 PAD

Applicable water,steamoil, viscous media

Fire prevention and anti-static,blow-out proof stem

Torque balance，Daikin/3M seal

Inventment casting,casting passed Germany TUV certification

Material:CF8/CF8M/CF3/CF3M/WCB(Customizable)

STANDARD SPECIFICATION

Pressure/temperature:ASMEB 16.34         Design:GB/T12237

Structure length:GB/T12221                     Test:GB/T13927

Connection type:HG/T20592GB/T9113

2PC FLANGED BALL VALVE WITHISO5211 PAD(ANSI150lB)

Applicable water,steam,oil、viscous media

Fire prevention and anti-static,blow-out proof stem

Torque balance，Daikin/3M seal

investment casting.casting passed Germany TUV certification

Material:CF8/CF8M/CF3/CF3M/WCB(Customizable)

STANDARD SPECIFICATION

Pressure/Temperature:ASMEB16.34                Design:API 608

Structure length: ASME B16.10                       Test:AP!598

Connection:ASMEB16.5

2PCFLANGED BALLVALVE

WITHISO5211 PAD(ANSI300LB)

Applicable water、steam、oil、viscous media

Fire prevention and anti-static, blow-out proof stem.

Torque balance，Daikin/3M seal

investment casting,casting passed Germany TUv certification

Material:CF8/CF8M/CF3/CF3M/WCB(Customizable)

STANDARD SPECIFICATION

Pressure/temperature:ASME B16.34        Design:API 608

Structure length:ASME B16.10                Test:API598

Connection:ASME B16.5

2PCFLANGED BALL VALVE

WITHISO5211 PAD(ANSI150LB)

Applicable water、steam、oil、viscous media

Fire prevention and anti-static,blow-out proof stem.

Torque balance，Daikin/3M seal

Investment casting, casting passed Germany TUV certification

Material:CF8/CF8M/CF3/CF3M/WCB(Customizable)

STANDARD SPECIFICATION

Pressure/temperature: ASME B 16.34            Design:AP1608

Structure length:ASME B16.10                      Test:API598

Connection type:ASMEB16.5

2PCFLANGED BALLVALVE WITH ISO5211 PAD(JIS 10K)

Applicable water、steam、oil、viscous media

Fire prevention and anti-static,blow~out proof stem.

Torque balance，Daikin/3M seal

investment casting. casting passed Germany TÜV certification

Material:CF8/CF8M/CF3/CF3M/WCB(Customizable)

STANDARD SPECIFICATION

Pressure/temperature:ASME B 16.344            Design; JIS BS5351

Structure length: JIS B2002                            Test:JIS B2003

Connection type:JlS B2220

2PC FLANGED BALL VALVE WITH ISO5211 PAD(DIN)

Applicable water、steam、oil,viscous media

Fire prevention and anti-static,blow-out proof stem.

Torque balance，Daikin/3M seal

Investment casting.casting passed Germany TUiv certification

Texture of material:CF8/CF8M/CF3/CF3M/WCB(Customizable)

STANDARD SPECIFICATION

Pressure/temperature: ASME B16.34                   Design:DIN 3357

Structure length:DIN3202-F4                              Test:EN 12266

Connection type: EN 1092-1

2PC FLANGED BALL VALVE WITH ISO5211 PAD(JB)

Applicable water、steam、oil、viscous media

Fire prevention anti-static,blow-out proof stem. Torque balance，Daikin/3M seal

Investment casting,casting passed Germany TUv certification

Material:CF8/CF8M/CF3/CF3M/WCB(Customizable)

STANDARD SPECIFICATION

Pressure/Temperature:GB T12224                     Design:GB T12237

Structure length:GB T12221                              Test:GB T13927

Connection type:JB/T79.1
